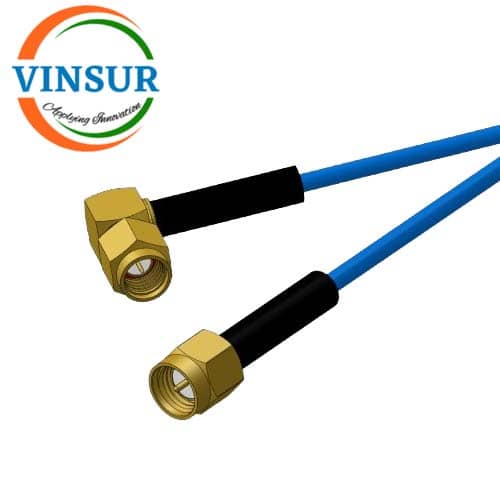

VSW-614104307A-34E — RF CABLE ASSEMBLY – 50 OHMS , SMA MALE, STRAIGHT To SMA MALE, RIGHT ANGLE For RG405 T-FLEX CABLE Of LENGTH 34 INCH
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMA Cable Assembly
- RG405 T-flex Cable
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | SMA |
| Gender 2 | Plug(Male) |
| Orientation 2 (body) | Right Angle |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| VSWR | ≤1.25 |
| Frequency | DC to 12Ghz |
| Impedance | 50 Ohms |
| Cable Type | RG405(0.086)T-flex |
| Length | 34Inch |
| Temp (Max Degrees Celsius) | -65°C |
| Temp (Min Degrees Celsius) | +165°C |
| CABLE SPECIFICATION | |
| Cut-off Frequency | 60GHz |
| Impedance | 50 ohms |
| Cable Diameter | 3mm |
| Inner Conductor | Solid Silver- Plated Copper |
| Inner Shield | Silver plated copper flat ribbon |
| Dielectric | Solid PTFE |
| Outer Conductor | Silver plated copper braid |
| Jacket | FEP (BLUE) |
| Weight (lbs./ft) | 0.015 (0.022 (kg/m) |
| Temperature Range | -65°C to +125°C |
| Operating Voltage | 1.5 kV Volts RMS |
