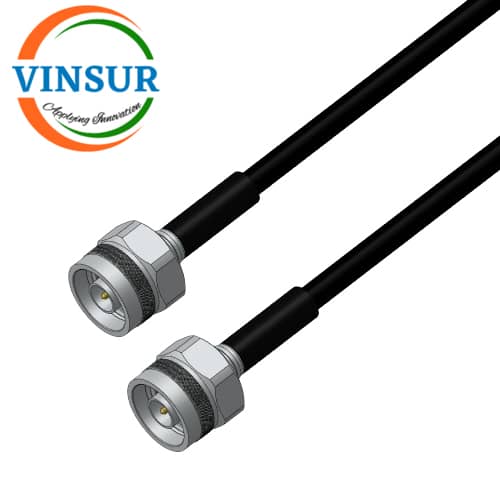

VSW- 611001103A-2D – N-TYPE STRAIGHT MALE TO N-TYPE STRAIGHT MALE FOR LMR-240-UF CABLE ASSEMBLY
- RF Cable Assembly
- N-type Cable Assembly
- N-type to N-type Cable Assembly
- FOR LMR240-UF Cable
Description
| SPECIFICATION | |
| RF Series 1 | N-type |
| Gender | Plug (Male) |
| Orientation1 (body) | Straight |
| RF Series 2 | N-type |
| Orientation 2 (body) | Straight |
| Gender 2 | Plug (Male) |
| Frequency | DC-8Ghz |
| Impedance | 50 Ohms |
| Cable Type | Times LMR-240-UF |
| Length | 2Meter |
| VSWR | 1.5:1 |
| Insertion Loss | 0.8dB |
| Temp (Max Degrees Celsius) | +85 |
| Temp (Min Degrees Celsius) | -40 |
