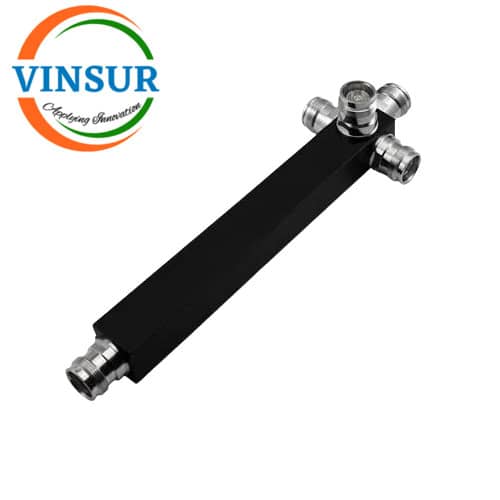

VSW-4PS-327-160-41F — 4WAY SPLITTER 380-2700MHZ
- RF Passive Device
- RF Splitter
- 380-2700MHZ
- 3-way
- 4.3/10-female
Description
| SPECIFICATIONS | |
| Split Chanel | 4-way |
| Split Loss(dB) | 6.0 |
| Insertion Loss(dB) | ≤0.6 |
| Freq(MHz) | 380-2700MHz |
| VSWR | ≤1.40 |
| PIM Rating(dBc) | -160dBc@2x43dBm |
| Power Rating(W) | 300W (Average Per Port) |
| Impedance | 50 ohm |
| Connector | 4.3/10-female |
| Color | Black-plated |
| Dimensions(mm) | See Mechanical Drawing |
| Operating Temperature(℃) | -30~+65 |
| Relative Humidity | 5-95% |
| Application | Indoor & outdoor using IP65 |
| Weight(kg) | 0.80 |
