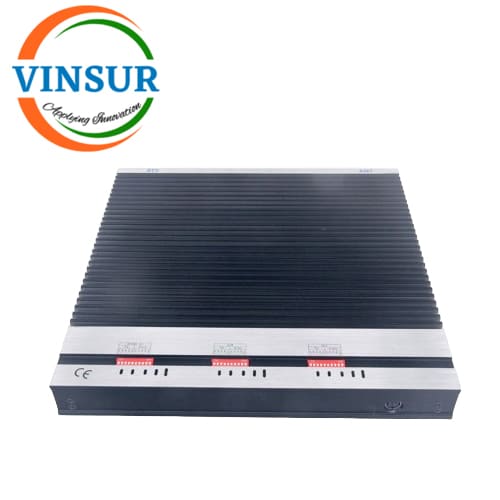

VSW-30DBM-REP — 30DBM REPEATER (MOBILE SIGNAL BOOSTER)

  • RF Booster/Repeater
  • 30DBM Repeater
  • N Female

Applications:

  • Basements
  • Shopping Malls
  • Offices, Parking Lots
  • Hotels
  • Home

Click Here to get Datasheet



SKU: VSW-30DBM-REP Category: Tag:
Description
SPECIFICATIONS
Frequency Range Uplink: 1920-1980 MHz
Downlink: 2110-2170 MHz
Gain >75 dB
Out Power UL & DL 30 dBm min
Manual Gain Control 31 dB in steps of 1 dB
Power Consumption <30 watts
System (Average) Gain +< 20 dB

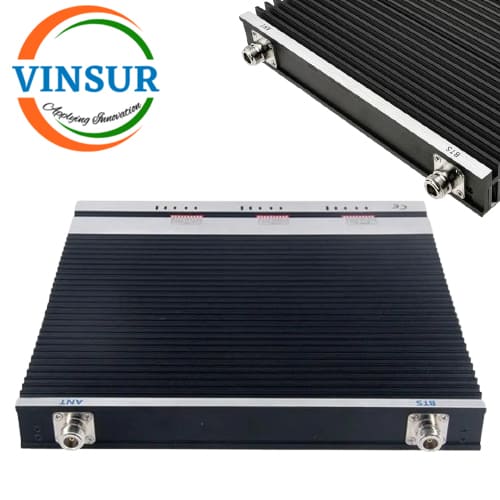

Connectors N type
Out of band Gain <50 dB at 400 KHz
<40dB at 600 KHz
<35 dB at 1 MHz
<25dB at 5 MHz
Noise Figure <6 dB



VSWR <1.5:1
Inter Modulation Products various

Emission (ETS 3006094 GSM 11.26) at output

 36 dBm @ Khz-1Ghz ≤30 dBm @ 1Ghz-1Ghz
Input Supply Ac 160-270 volts (50+2 Hz)
Visual Alarm Green LED
Gain flatness and variation <2dB
