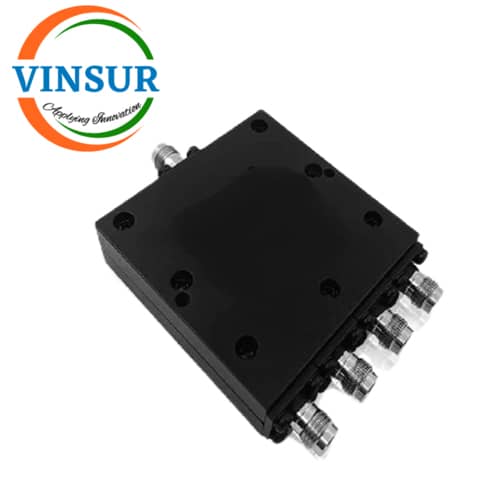

VSW-2WSP-50G — 4-WAY RF POWER SPLITTER DC-50GHZ 2.4MM FEMALE
- RF Passive Device
- RFÂ Power Splitter
- DC-50 GHz
- 4-Way
- 2.4mm (Female)
Description
| SPECIFICATIONS | |
| Product Name | 4Way Power Splitter |
| Frequency Range | DC-50 GHz |
| Maximum input Power | 0.5 W |
| Insertion loss | ≤ 8.5 dB up to 50 GHz |
| connector | 2.4mm (Female) |
| Amplitude tracking | ≤ 0.3 dB |
| Operating Temperature | 25°C±5°C |
| Input VSWR | ≤ 1.7 up to 50 GHz |
| Output VSWR | ≤ 1.7 up to 50 GHz |
