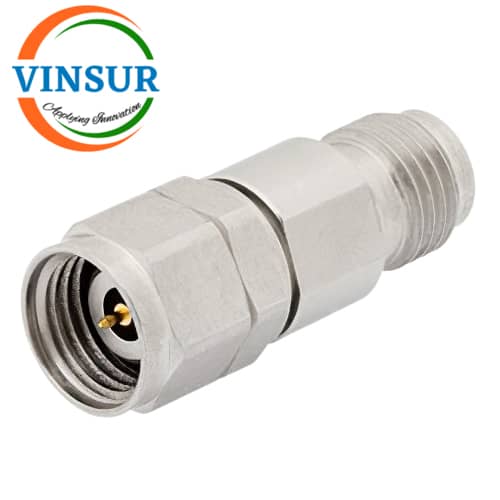

VSW-2W-50G-COAT — RF ATTENUATOR – 50 OHMS, 2.4MM MALE TO 2.4MM FEMALE 2W COAXIAL ATTENUATOR
- RF Attenuator
- RF Coaxial Attenuator
- DC-50GHz
- Attenuation(20dB)
- 2.4 Male To 2.4 Female
Description
| CONNECTOR SPECIFICATION | |
| Freq(GHz) | DC-50GHz |
| Attenuation(dB) | 20 |
| Accuracy(dB) | ±0.8 dB |
| VSWR | 1.3Max |
| Average Power(W) | 2W @ 25°C ambient |
| Impedance | 50Ω |
| Input Connector | 2.4mm Male |
| Output Connector | 2.4mm Female |
| Colour | Silver |
| Operating Temperature | -20°C to ±70°C |
| Body | Passivated Stain Less Steel |
| Center Contact | Gold Plated Beryllium Copper |
| Temperature Coefficient | <0.0005 dB/ dB/*C |
