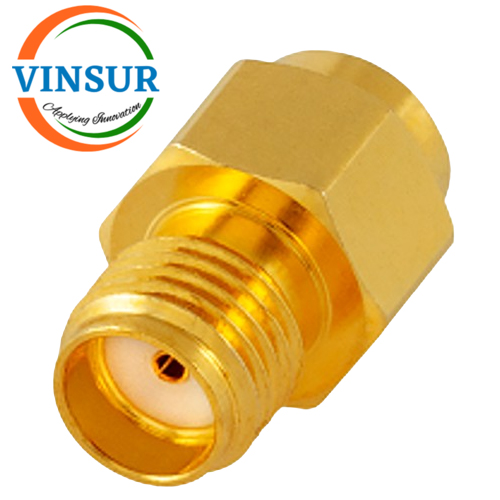

VSW-1W-18G-SMA-F — 1W RF Termination Load (DC-18GHz, SMA Female)

  • RF Passive Device
  • RF Termination Load
  • DC-18GHz
  • SMA Female

Click Here to get Datasheet

SKU: VSW-1W-18G-SMA-F Category: Tags: , ,
Description
SPECIFICATION
Body Finish Gold
Body Material Brass
Contact Finish Gold
Contact Material Brass
Gender Jack
Impedance (Ohms) 50
Orientation Straight
Power Handling 1watt
VSWR 1.20
Frequency DC-18GHz
Temp (Max Degrees Celsius) 125°C
Temp (Min Degrees Celsius) -55°C
