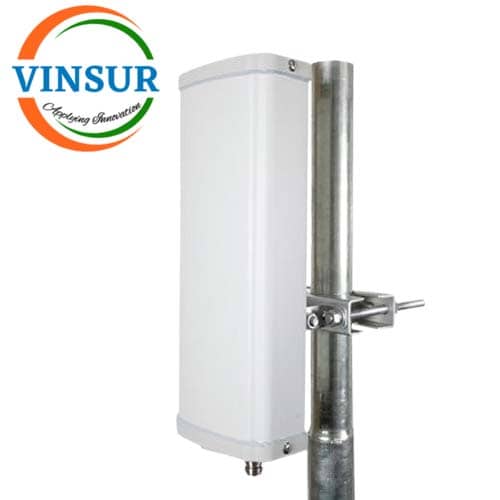

VSW-14-16Dbi-SCT-AN — DIRECTIONAL SECTOR ANTENNA 865 to 868 MHz 14-16Dbi
- RF Antenna
- Sector Antenna
- Circular Polarization
- 865-868MHz
- 14-16 dBi Gain
Description
| ELECTRICAL SPECIFICATION | |
| Frequency range | 865-868MHz |
| GAIN, min. | 14-16 dBi |
| VSWR, max. | 1.5 :1 |
| Polarization | Linear, Vertical |
| 3 dB Beam-Width, H-Plane, typ. | 95∘ |
| 3 dB Beam-Width, E-Plane, typ. | 100∘ |
| Input Impedance | 50 Ohm |
| Lightning Protection | DC Grounded |
Â
| ENVIRONMENTAL SPECIFICATION | |
| Operating Temperature Range | -40∘C to +65∘C |
| Water Proofing | IP-65 |
| MECHANICAL SPECIFICATION | |
| Dimensions (HxWxD) | 425mm x 285mm x 90mm |
| Weight | 600 gr. |
| Connector | N-Type, Female Sq. Flange |
| Back Plane | Aluminum protected through chemical passivation |
| Radom | ABS |
| Mount | Indoor/outdoor |
