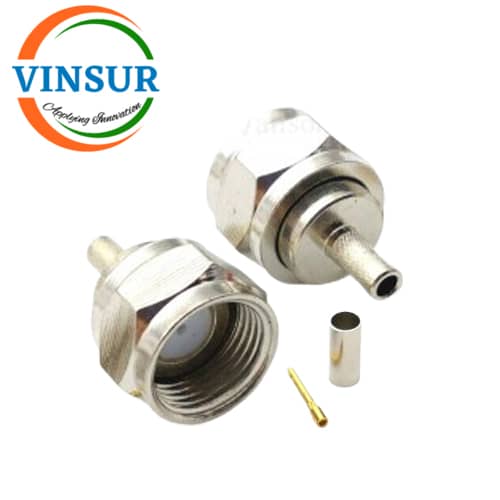

VSW-12B11014 — RF CONNECTOR – 75 OHMS , F-TYPE MALE , STRAIGHT , CRIMP TYPE , RG316 CABLE
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 75Ω |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG316 |
| Max Frequency (GHz) | DC to 3GHz |
| VSWR | ≤1.2 |
| Polarity | Standard |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +140°C |
