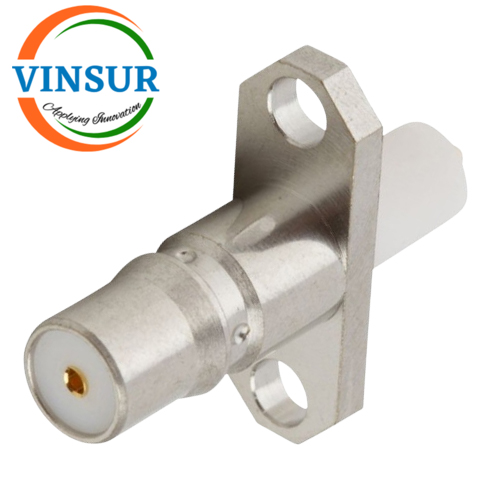

VSW-11J213L0 — RF CONNECTOR – 50 OHMS , QMA FEMALE ,STRAIGHT 2HOLE FLANGE MOUNT,6.35MM EXTENDED TEFLON,PCB- ROUND POST
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | PCB-Round Post |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination Style | Solder |
| Mounting Type | PCB Round Post |
| Mounting Features | 2-Hole Flange |
| Insulator Material | PTFE |
| VSWR | 1.12Max |
| Max Frequency (GHz) | DC to 6 GHz |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | 165°C |
