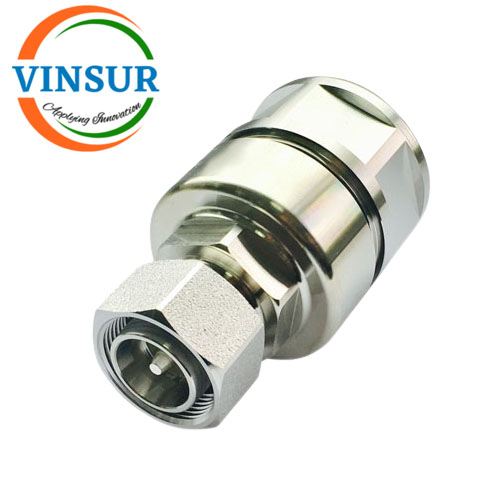

VSW-11J1192A — RF CONNECTOR – 50OHMS , 4.3-10 MALE , STRAIGHT , CLAMP TYPE , 7/8” CABLE

Reviews

There are no reviews yet.

Be the first to review “VSW-11J1192A — RF CONNECTOR – 50OHMS , 4.3-10 MALE , STRAIGHT , CLAMP TYPE , 7/8” CABLE”

ENVIRONMENTAL & MECHANICAL SPECIFICATIONS
Coupling Nut Torque	5-15 Nm
Coupling Nut Retention Force	≥450 N
Durability	≥500 Cycles
Axial Holding Force	30 N (Centre Conductor)
Working Temperature	-45°C to +85°C
ROHS	Compliance
Sealing Class	IP68
Gauge Retention Force	(Centre Contact) ≥4.0 N (Outer Contact)
MATERIAL & PLATING
PIN-Centre Contact	Tin Bronze/Silver Plated
Outer Contact & Body	Brass/Trimetal Plated
Dielectric	TPX
Gasket	Silicon Rubber
Nut	Brass/Nickel Plated
