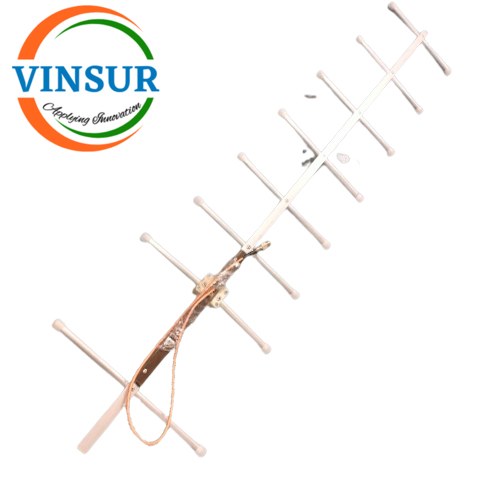

VSW-112315A1-10–380 to 436 9Dbi UHF Linear Yagi Antenna

  • RF Antenna
  • Yagi Beam Antenna
  • 380 to 436 MHz
  • 9dBi

Click Here to get Datasheet

SKU: VSW-112315A1-10 Category: Tags: , ,
Description
SPECIFICATION
Freq.range-Mhz 380-436
Gain-dBi 9dBi
Ver.Beamwidth-° 40
Hor.Beamwidth-° 44
F/B Ratio-dB ≥15
VSWR ≤1.5
Impedance-Ω 50
Polarization Linear
Max.Power-W 100
Connector N Female or Customized
 Length-m 1mtr
Weight-Kg 1.2
Pole Diameter-mm φ40 to 50
