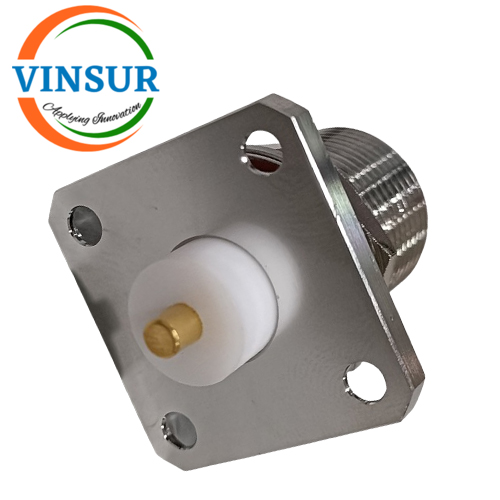

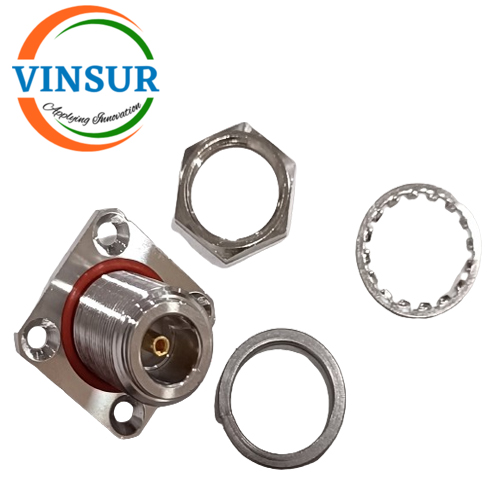

VSW-111114A — RF CONNECTOR – 50OHMS ,N FEMALE,ST ,4-HOLE FLANGE 5MM EXTENDED TEFLON PCB MOUNT

  • RF Connectors
  • N-type Connectors
  • N Female
  • Bulkhead
  • 50Ω

Click Here to get Datasheet



SKU: VSW-111114A Category: Tags: ,
Description
CONNECTOR SPECIFICATIONS
Gender Jack (Female)
Orientation Straight
Impedance (Ohms) 50
Centre Conductor Phosphor Bronze, Silver Plating
Outer Conductor Brass, Ternary alloy Plating
O-ring Silicon Rubber
Max Frequency (GHz) DC-6GHz
VSWR 1.20 Max
Insertion Loss 0.1dB@6GHz
Insulator Material PTFE
Dielectric withstand Voltage 2000V
Centre Conductor ≤1mΩ
Outer Conductor ≤1mΩ
Insulation Resistance ≥5000mΩ
Durability ≥500mΩ
Mounting Features Bulkhead
