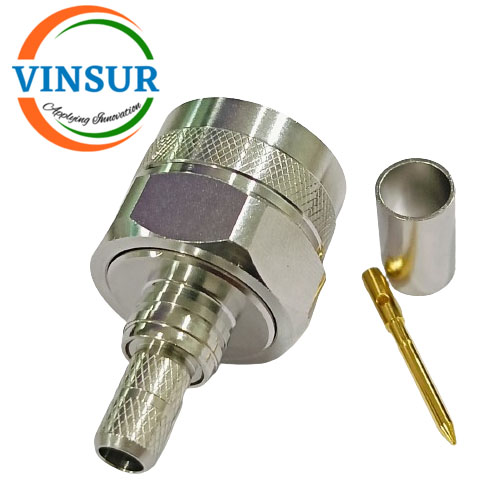

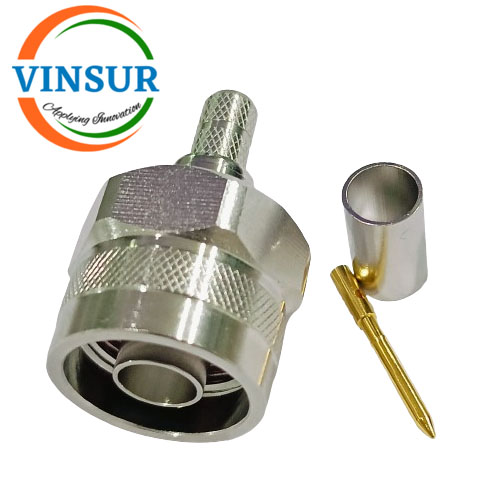

VSW-11111016 — RF CONNECTOR – 50OHMS , N MALE , STRAIGHT , CRIMP TYPE , LMR-240 CABLE
- RF Connectors
- N-type Connectors
- Male Straight
- For LMR 240 Cable
- 50Ω
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Crimp |
| Insulator Material | PTFE |
| Cable Type | LMR240 |
| Coupling Mechanism | Threaded |
| Mounting Feature | Free Hanging(In-Line) |
| Max Frequency (GHz) | 6 |
| VSWR | ≤1.25 |
| Polarity | Standard |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -40 |
| Max. Temp. (Celsius) | +85 |
