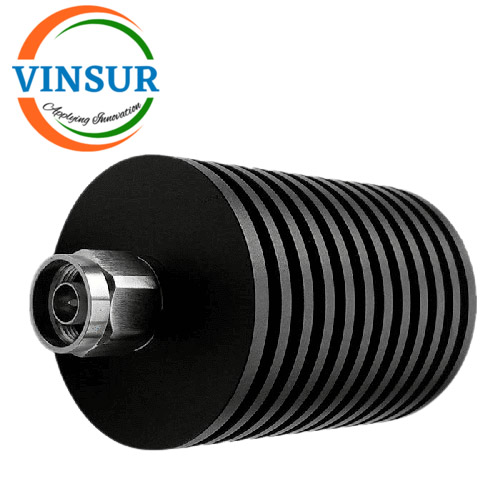

VSW-100-18-NM — 100 WATT RF TERMINATION LOAD DC-18GHZ N MALE

  • RF Passive Device
  • RF Termination Load
  • DC-18GHZ
  • N MALE

Click Here to get Datasheet

SKU: VSW-100-18-NM Category: Tags: , ,
Description
ELECTRICAL SPECIFICATION
Freq(MHz) DC-18GHz
VSWR ≤1.35
Power(W) 100 @25℃(average)
Impedance 50 ohm
Connector N Male
Colour Black
Temp(deg) -30~+65
Weight(kg) 0.80
