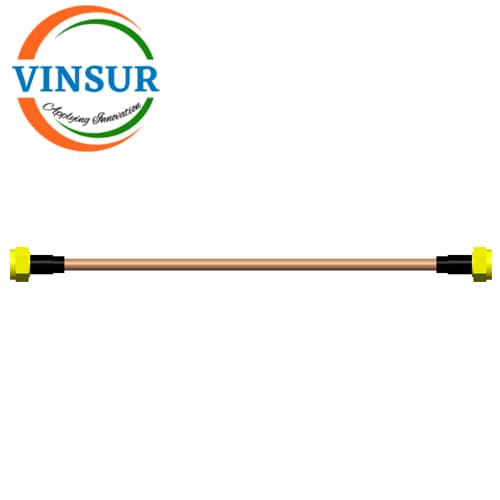

SMA STRAIGHT MALE TO SMA STRAIGHT MALE RG-316 DOUBLE SHIELDED CABLE ASSEMBLY 12INCH(305MM)
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMA Cable Assembly
- RG316DB Cable
Description
| SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug (Male) |
| Orientation1 (body) | Straight |
| Body 1 | Brass, Gold |
| RF Series 2 | SMA |
| Gender 2 | Plug (Male) |
| Orientation 2 (body) | Straight |
| Body 2 | Brass, Gold |
| Frequency | DC-6Ghz |
| Impedance | 50 Ohms |
| VSWR | ≤1.25 |
| Cable Length | 12Inch(305mm) |
| Temperature Rating | -40°C ~ +85°C |
| CABLE SPECIFICATION | |
| Cable Diameter | 2.92 ±0.2 |
| Cable Type | RG-316DS(Double Shielded) |
| Suitable for frequencies | up to 12 GHz |
| Weight | 0.023 Kg/m |
| Impedance | 50Ω |
