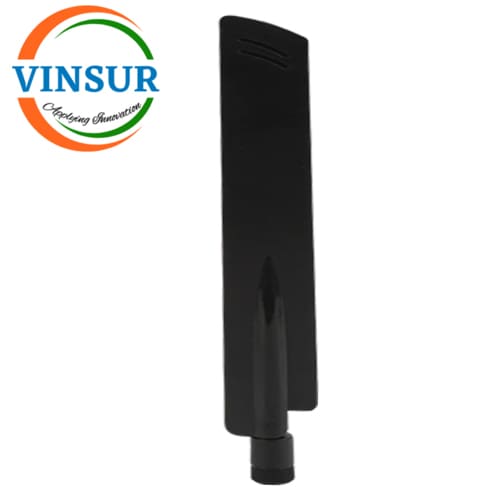

Rubber Duck Antenna(2.4-5.8GHz 5dBi)
P/N : VSW-2.4-5.8G-RDA
- RF Antenna
- Antenna Type : Rubber Duck Antenna
- Frequency : 2.4 – 5.8GHz
- Gain : 5dBi
Applications:
- Dual-band Wi-Fi routers
- Wireless access points
- Drone and FPV systems
- Wireless security bridges
 Click here to get Data Sheet
Description
| ELECTRICAL SPECIFICATION | |
| Frequency Range | 2.4 to 5.8GHz |
| Gain | 5 dBi |
| VSWR (Max.) | ≤ 1.9 |
| Input Impedance | 50Ω |
| Polarization | Linear |
| Maximum input power | 50W |
| MECHANICAL SPECIFICATION | |
| Length (mm) | 35*223mm |
| Connector | SMA or Customized |
| ENVIRONMENTAL SPECIFICATION | |
| Operating Temperature | -20ËšC ~ +80ËšC |
| Storing temperature | -40ËšC ~ +80ËšC |
| Radiation | Omni-directional |
| Color | Black / White |
