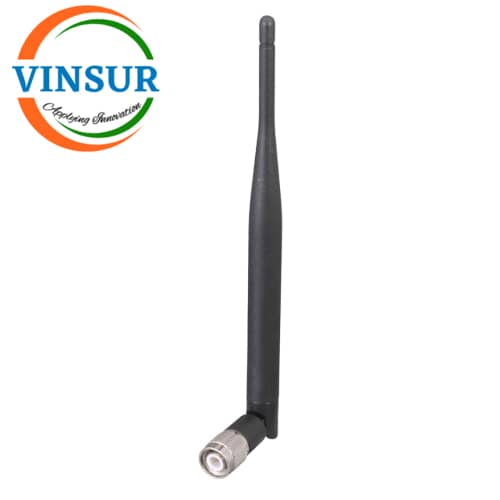

Rubber Duck Antenna(824-960MHz And 1710-1980MHz 1.2 / 2dBi)
P/N : VSW250037-AN
- RF Antenna
- Antenna Type : Rubber Duck Antenna
- Frequency : 824-960MHz And 1710-1980MHz
- Gain : 1.2 / 2dBi
Applications:
- Dual-band cellular devices
- IoT and smart meters
- Commercial security panels
- Fleet tracking modules
 Click here to get Data Sheet
Description
| ELECTRICAL AND MECHANICAL SPECIFICATION | |
| Frequency | 824-960 MHz & 1710-1980 MHz |
| Gain | 1.2 / 2 dBi |
| Impendence | 50Ω |
| Connector | SMA |
| Gender | Plug(Male) |
| Orientation | Right Angle |
| VSWR (Max.)Â Â | < 2.0 |
| Polarization    | Vertical |
| HPBWÂ | H: 3600; V: 400 |
| Power Handling | 10 W |
| Humidity        | 5-75% |
| Dimension | 50 x 10(mm)Â Â Â |
| Weight | 10 grams |
| Housing          | Plastic / Black |
| Operating Temperature | -30° to +60°C |
