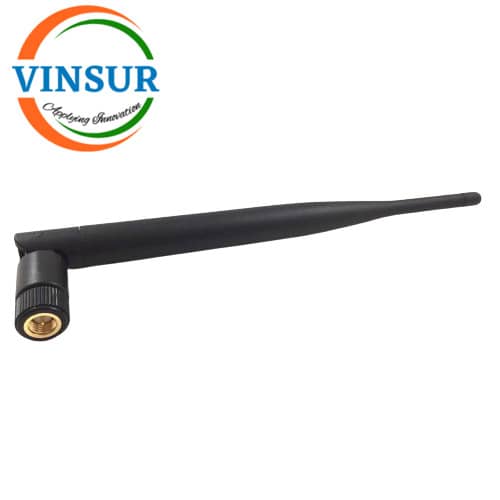

GSM Rubber Duck Antenna(2.4GHz 3dBi)
P/N : VSW-113241712-11
- RF Antenna
- Antenna Type : GSM Rubber Duck Antenna
- Frequency : 2.4GHz
- Gain : 3dBi
Applications:
- Wi-Fi routers and access points
- Bluetooth devices
- ZigBee and Z-Wave systems
- Drone and RC controllers
- Wireless security cameras
 Click here to get Data Sheet
Description
| ELECTRICAL AND MECHANICAL SPECIFICATION | |
| Frequency | 2.4Ghz |
| Gain | 3dBi |
| Impendence | 50Ohm |
| Connector | SMA |
| Gender | Plug(Male) |
| Orientation | Right Angle |
| VSWR (Max.)  | ≤ 2 |
| Polarization    | Vertical |
| Horizontal Beam Width | 360° |
| Vertical Beam Width | 25° |
| Power Handling | 10 W |
| Weight | < 100 grams |
| Housing          | ABS Black |
| Operating Temperature | -30° to +60°C |
