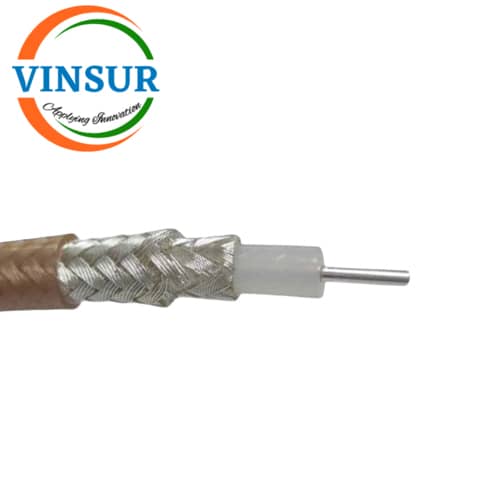

RG142 COAXIAL CABLE (VSW-RG142-CC)
- RF COAXIAL CABLE
- RG-142 COAXIAL CABLE
Description
| CABLE CONSTRUCTION | ||
| Description | Material | Size |
| Inner Conductor | Silver Plated Copper | 0.94mm |
| Dielectric | PTFE | 3.00mm |
| Inner Braid | Silver Plated Copper Braid | 3.51mm |
| Outer Braid | Silver Plated Copper Braid | 4.07mm |
| Jacket | FEP | 4.95mm |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50 ohms |
| Capacitance | 100 pF/m |
| Velocity of Propagation | 70% |
| Max Voltage | 750 VMS |
| Max Frequency | 8,000 MHz |
| RF Shielding | 90 dB |
| Temperature Range | -55/+200C |
| Bend Radius (Installation) | 10 |
| Bend Radius (Repeated) | 20 |
| Weight | 43 lb/ft |
| Diameter | 0.195(4.95mm) |
| Attenuation vs Frequency | ||
| Frequency MHz | Attenuation (db/100ft) | Power (watts) |
| 10 | 1.2 | 5601 |
| 30 | 2.1 | 3206 |
| 50 | 2.7 | 2468 |
| 100 | 4 | 1726 |
| 400 | 8 | 831 |
| 1000 | 13 | 504 |
| 1500 | 16 | 401 |
| 2000 | 19 | 340 |
| 2500 | 21 | 298 |
| 3000 | 24 | 267 |
| 10000 | 49 | 125 |
