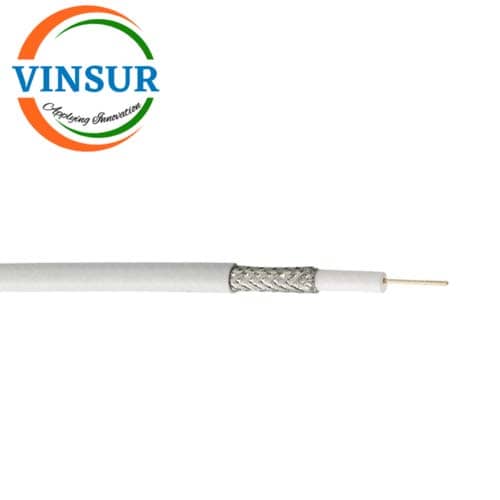

RG-188 COAXIAL CABLE (VSW-RG188-CC)

CABLE CONSTRUCTION
Description	Material	Diameter
Inner Conductor	Copper Clad Steel, Silver, 7 Strands	0.02 in [0.51 mm]
Dielectric	PTFE	0.06 in [1.52 mm]
First Shield	Silver Plated Copper Braid] 95.2% coverage	0.081 in [2.06 mm
jacket	PTFE, White	0.11 in [2.79 mm]

ELECTRICAL SPECIFICATIONS
Impendence	50Ω
Capacitance	100pF/m
Signal Loss	0.83dB/m @ 850MHz, 1.34dB/m @ 2100MHz
V.S.W.R	1.2 Max. @ 1 GHz
Frequency Range	DC-3GHz
Velocity of Propagation	70%
Time Delay	1.45 [4.76] ns/ft [ns/m]
Operating Voltage (AC)	1,200 Vrms
Dielectric Withstanding Voltage (AC)	2,000 Vrms
Inner Conductor DC Resistance	84.1 Ohms/1000ft
Nominal Capacitance	29.3 [96.13] pF/ft [pF/m]
Power@ 1GHz	160 Watts
Diameter	0.11 in[2.79 mm}
Weight	0.01 lbs/ft [0.01 kg/m]
Operating Range	-55°C to 200°C

Frequency (GHz)	Nom. Attenuation (dB /m)	Nom. attenuation (dB /ft)	Max. CW power (W)
	sea level 25° C ambient temperature	sea level 25° C ambient temperature	sea level 40° C ambient temperature
0,3	0,44	0,133	329
0,45	0,54	0,165	268
0,6	0,63	0,193	232
0,75	0,72	0,218	208
0,9	0,79	0,241	190
1,05	0,86	0,263	176
1,2	0,93	0,283	164
1,35	0,99	0,302	155
1,5	1,05	0,320	147
1,65	1,11	0,338	140
1,8	1,17	0,355	134
1,95	1,22	0,372	129
2,1	1,27	0,388	124
2,25	1,32	0,404	120
2,4	1,37	0,419	116
2,55	1,42	0,434	113
2,7	1,47	0,448	110
2,85	1,52	0,463	107
3,0	1,56	0,477	104
