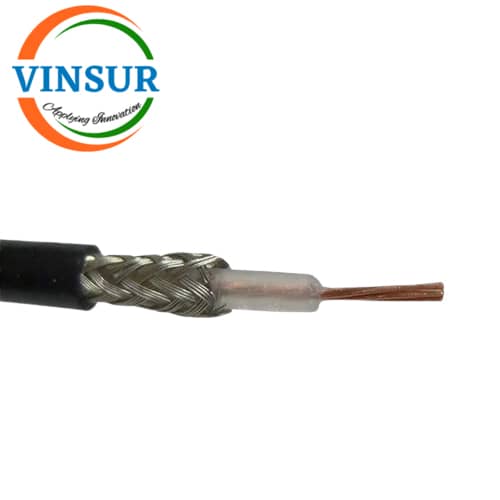

RG-174 COAXIAL CABLE (VSW-RG174-CC)
- RF COAXIAL CABLE
- RG-174 COAXIAL CABLE
- 50OHMSÂ CABLE
Description
| CABLE CONSTRUCTION | ||
| Description | Material | Size |
| Centre Conductor | Copper Wire (Strand) | 0.48mm |
| Dielectric | Polyethylene PE | 1.55mm |
| Braid | Tin Plated Copper | 1.95mm |
| Jacket | Black PVC | 2.7mm |
| ELECTRICAL SPECIFICATIONS | |
| Impendence | 50Ω |
| Capacitance | 100pF/m |
| Signal Loss | 0.83dB/m @ 850MHz, 1.34dB/m @ 2100MHz |
| V.S.W.R | 1.2 Max. @ 1 GHz |
| Frequency Range | 0-3GHz |
| Velocity of Propagation | 66% |
| Nominal Delay | 5.05ns/m |
| Voltage Withstand | 1100VDC RMS |
| Weight/100m | 1.19kg |
| Operating Temperature | -40°C to +75°C |
| Power | @1GHz 17 Watts |
| Minimum Bend Radius | 13mm |
| Attenuation vs Frequency | ||
| FREQUENCY | ATTENUATION | UNIT |
| 1 | 90 | dB/100 ft. |
| 10 | 3.30 | dB/100 ft. |
| 50 | 5.80 | dB/100 ft. |
| 100 | 8.40 | dB/100 ft. |
| 200 | 12.50 | dB/100 ft. |
| 500 | 21.21 | dB/100 ft. |
| 1000 | 34.00 | dB/100 ft. |
| 1450 | 36.69 | dB/100 ft. |
| 1800 | 40.96 | dB/100 ft. |
| 2200 | 45.39 | dB/100 ft. |
| 3000 | 55.49 | dB/100 ft. |
