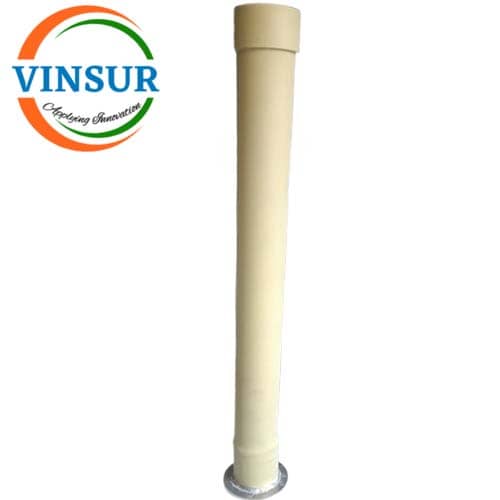

Omni-Directional MIMO Antenna(700-850MHz 7-9dBi)
P/N : VSW250093-AN
- RF Antenna
- Antenna Type : Omni Directional Antenna
- Frequency : 700-850MHz
- Gain : 7-9dBi
Click here to get Data Sheet
Description
| ELECTRICAL SPECIFICATION | |
| Frequency Range | 700-850MHz |
| Gain | 7-9dBi |
| Horizontal Beam width | 360° |
| Vertical Beam width | 80°±5° / 70°±5° / 60°±5° |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Isolation between Ports | ≥25dB |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 50W |
| Impedance | 50Ω |
| Connector | N Female |
| Antenna Radom Material | UPVC |
| Mount Way | Vehicle Mounting |
| MECHANICAL SPECIFICATION | |
| Antenna Dimension | 500 x 76 mm (L x ⌀) |
| Weight | 1.5Kg |
| Operating Temperature | 40℃ to+60℃ |
| Rated Wind Velocity | 100km/hr |
