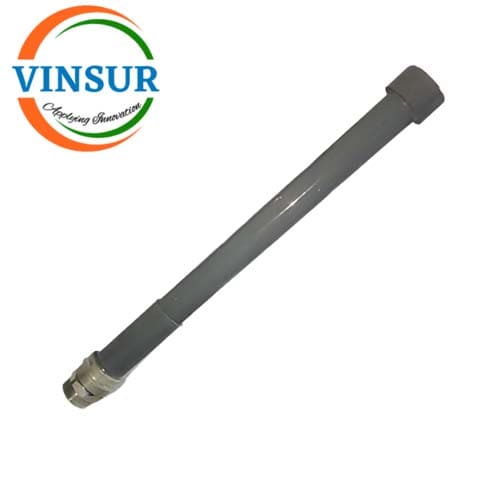

Omni Directional Antenna(GPS+GSM)
P/N : VSW260042-AN
- RF Antenna
- Antenna Type : Omni Directional Antenna
- Frequency : GPS+GSM
- Gain : 4-5dBi
Click here to get Data Sheet
Description
| ELECRTICAL & MECHANICAL SPECIFICATION | |
| Frequency (MHz) | GPS+GSM |
| Gain (dBi) | 4-5dBi |
| VSWR (Max) | 1.5:1 |
| H Plane BW (°) | 360 |
| E Plane BW (°) | 28±2 |
| Polarization | Vertical |
| Max. Power Input (Watts) | 100 |
| Impedance (Ω) | 50 |
| Lightning Protection | DC Grounded |
| Connector Termination | SMA(Male) |
| Dimension (mm) | 90×230 |
| Cable Type | RG402 Semi flex |
| Radome Material | UPVC |
| Gross Weight (Kg) | 500 Grams |
| Mounting Hardware | MS Galvanized & Powder Coated |
| Mounting Style | Tower and Pole |
| Supporting Pole Diameter | 1-1.5 Inches/40-60mm |
| Wind Speed (km/hr) | 120 |
