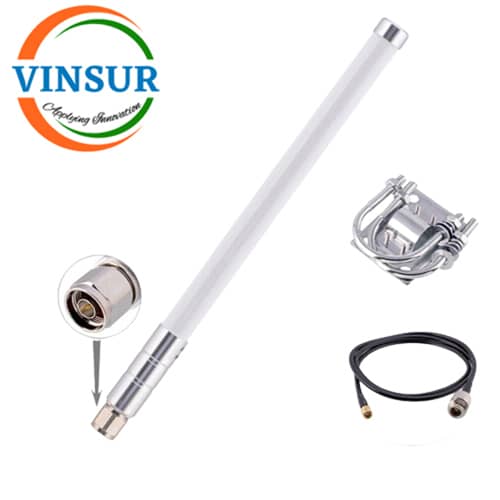

Omni Cylindrical Type Antenna(433MHz 9dB)
P/N : VSW-OCT-433MHz
- RF Antenna
- Antenna Type : Omni Cylindrical Type Antenna
- Frequency : 433MHz
- Gain : 9dBi
Applications:
- Industrial IoT & Telemetry
- Long-Range LoRa Systems
- Agriculture & Smart Farming
Click here to get Data Sheet
Description
| ELECTRICAL & MECHANICAL SPECIFICATIONS | |
| Frequency Band | 433MHz |
| Polarization | Linear |
| Radiation pattern | Omni |
| Beam-width | 360 degree (AZ) x 20 degree |
| Gain | 9dB |
| Size | 400 mm x 24 mm (Approx.) |
| VSWR | Better than 1.5:1 |
| Impedance | 50 Ohm |
| Connector | N type Female |
| Power Handling | 100 W |
| Application | Outdoor |
| Enclosure | Fibber Glass tube with metal base & Top Cap |
