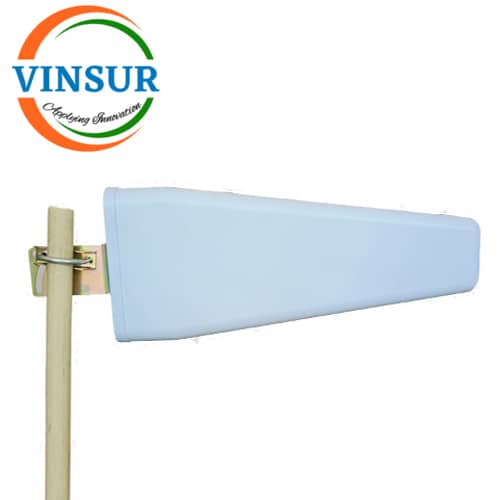

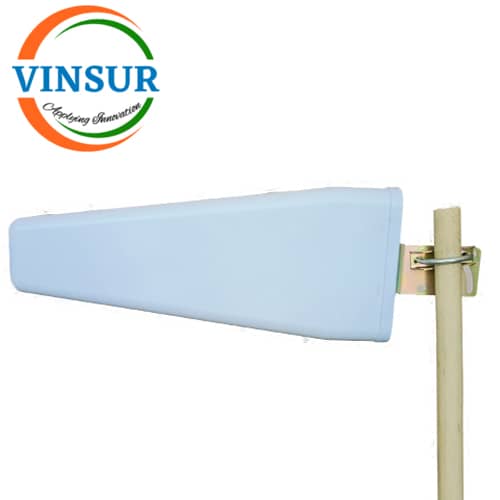

Log-periodic Antenna(1600 to 2700MHz 12dBi)
P/N : VSW260049-AN
- RF Antenna
- Antenna Type : LPDA Antenna
- Frequency : 1600 to 2700MHz
- Gain : 12dBi
Applications:
- Cellular Signal Boosting
- Rural Broadband Internet
- IoT & Telemetry Networks
- Multi-Band Testing
Click here to get Data Sheet
Description
| ELECTRICAL AND MECHANICAL SPECIFICATION | |
| Frequency range | 1600 to 2700MHz |
| Gain | 12dbi |
| Input impedance | 50ohm |
| VSWR (Max) | <1.3/<1.5 |
| Polarization | Vertical |
| Front to back ratio | >15db/>18db |
| Max. power | 50w |
| connector | N female or customized |
| Dimension | 540*210*65 mm |
| Weight | 500 grams |
| Mounting | Pole mount |
| Storage Temp(c) | -30~+75 |
| Operating temperature | -30 °C to 60 °C |
| humidity | 5-95% |
| Antenna Colour | Original ABS White |
| Radom | UV Protected ABS |
