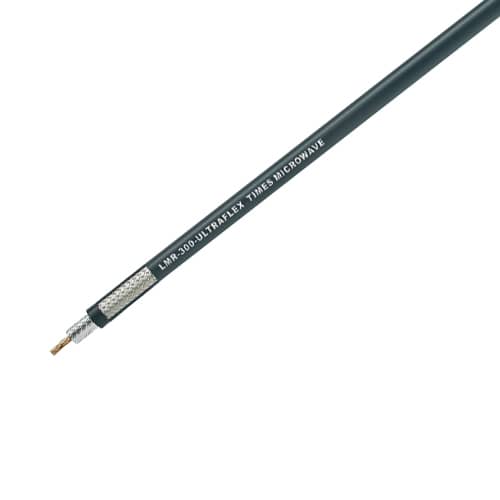

LMR®-300 Flexible Low Loss Communications Coax
LMR®-300
Flexible Low Loss Communications Coax
Ideal for…
- Jumper Assemblies in Wireless Communications Systems
- Short Antenna Feeder runs
- Any application (e.g. WLL, GPS, LMR, WLAN, WISP, WiMAX, SCADA, Mobile Antennas) requiring an easily routed, low loss RF cable
Description
| Electrical Specifications
Performance Property Units US (metric) |
||||
| Velocity of Propagation % | 82 | |||
| Dielectric Constant | NA | 1.38 | ||
| Time Delay | nS/ft (nS/m) | 1.20 | (3.92) | |
| Impedance | ohms | 50 | ||
| Capacitance | pF/ft (pF/m) | 23.9 | (78.4) | |
| Inductance | uH/ft (uH/m) | 0.060 | (0.20) | |
| Shielding Effectiveness | dB | >90 | ||
| DC Resistance | ||||
| Inner Conductor Outer Conductor
Voltage Withstand |
ohms/1000ft (/km) ohms/1000ft (/km)
Volts DC |
2.12
2.21 |
2000 |
(7.0)
(7.3) |
| Jacket Spark | Volts RMS | 5000 | ||
| Peak Power | kW | 10 | ||
