Horn Antenna(700-6GHz 10dBi) - Image 1

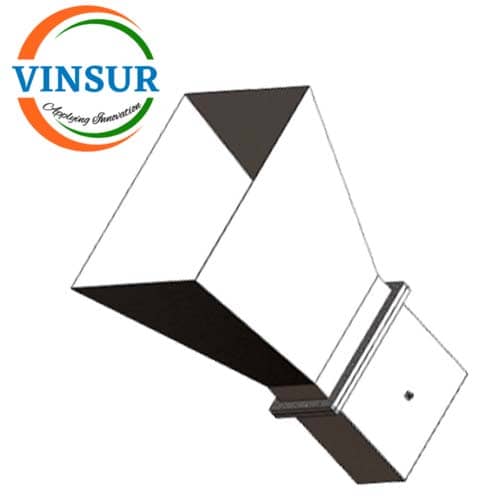

Horn Antenna(700-6GHz 10dBi)

P/N : VSW250045-AN

RF Antenna
Antenna Type : Horn Antenna
Frequency : 700-6GHz
Gain : 10dBi

Applications:

EMC/EMI Testing
Feed Horn for Satellite Dishes
Speed Enforcement Radar
Wireless Signal Monitoring & Scanning

Click here to get Data Sheet

Category: Horn Antennas Tags: 10dBi, 700-6GHz, Horn Antennas

Description
Reviews (0)

Description

ELECTRICAL & MECHANICAL SPECIFICATION
Frequency Range	700-6GHz
Gain	10dBi
VSWR	≤1.5
Polarization	Linear
Cross polarization	50 dB
Connector	N-Female
Average Power	300 W
Material	Aluminium
Size(L×W×H)	240×141×2725 ±5mm
Weight	2 Kg
