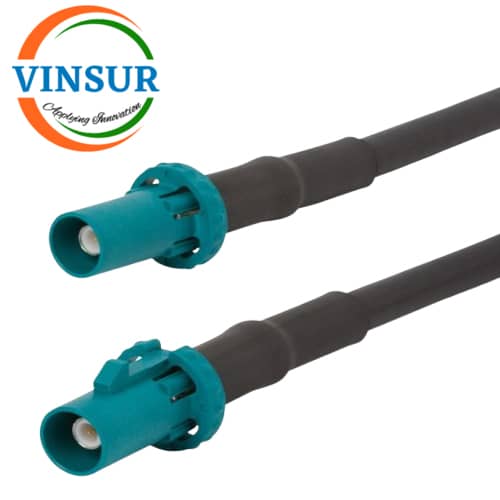

FAKRA STRAIGHT MALE TO FAKRA STRAIGHT MALE RG-58 50 OHM 12 INCHES Z KEY CODE
- RF Cable Assembly
- FAKRA Cable Assembly
- FAKRA to FAKRA Cable Assembly
- FOR RG174
Description
| SPECIFICATION | |
| RF Series 1 | FAKRA |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| RF Series 2 | FAKRA |
| Gender 2 | Plug(Male) |
| Orientation 2 (body) | Straight |
| FAKRA Key code | Z – Water Blue |
| Frequency | DC to 3Ghz |
| Impedance | 50 Ohms |
| VSWR | ≤1.2 Max |
| Cable Type | For RG174 |
| Length | 12Inch |
| Temp (Max Degrees Celsius) | -40°C |
| Temp (Min Degrees Celsius) | +75°C |
