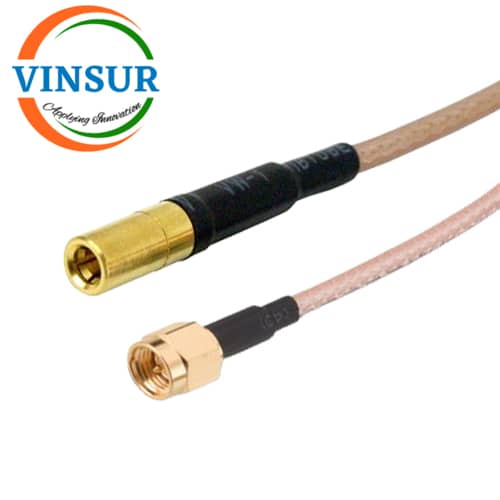

61M104106-46B — RF CABLE ASSEMBLY — 50 OHMS , SSMB MALE, STRAIGHT TO SMA MALE, STRAIGHT FOR 316 CABLE
- RF Cable Assembly
- SSMB Cable Assembly
- SSMB to SMA Cable Assembly
- RG316 Cable
Description
| SPECIFICATION | |
| RF Series 1 | SSMB |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| RF Series 2 | SMA |
| Gender 2 | Plug (Male) |
| Orientation 2 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Frequency | DC to 3Ghz |
| Impedance | 50 Ohms |
| Cable Type | For RG316 |
| VSWR | ≤1.2 |
| Length | 460mm(46CM) |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
