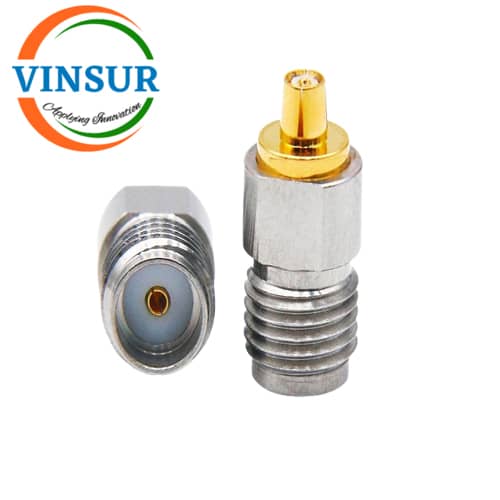

41421E21-33-6G — RF ADAPTER – 50 OHMS, SMA FEMALE TO UF.L(UMCC) FEMALE STRAIGHT ADAPTER

SKU: 41421E21-33-6G Category: SMA to UFL (UMCC) Tags: RF Adapters, SMA Adapters, SMA to UFL (UMCC) Adapters

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	SMA
Gender1	Jack(Female)
Body Finish	Nickel
Body Material	Stainless Steel
Contact Finish	Gold
Contact Material	Brass
Adapter Side 2 Series	UFL(UMCC)
Gender2	Plug(Male)
Orientation	Straight
Impedance (Ohms)	50
Body Finish	Gold
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Insulator Material	PTFE
Coupling Mechanism	Threaded
Mounting Feature	–
Max Frequency (GHz)	DC to 6GHz
VSWR	≤1.25 (DC 0~6GHz)
Temperature Rating	-45°C ~ +165°C
Insertion Loss	≤0.05xSqt(GHz)
Voltage Rating	335 V(rms)
Dielectric Withstanding Voltage	1000V
Insulation Resistance	≥5000Mohm
Mating Cycles	≥ 500 cycles
Mating Torque	5~7 in – lbs.
