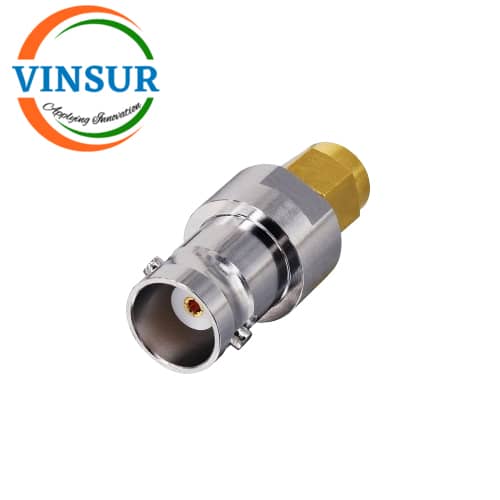

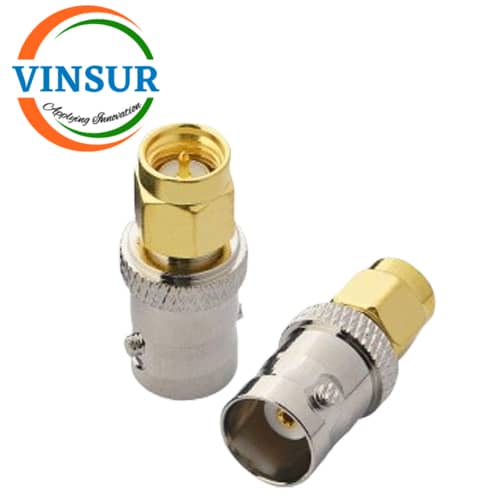

41410321 — RF ADAPTER – 50OHMS, SMA MALE TO BNC FEMALE STRAIGHT ADAPTER
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | BNC |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Adapter Side 2 Series | SMA |
| Gender2 | Plug (Male) |
| Orientation | Straight |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Body Plating | Gold/Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 4 GHz |
| VSWR(Max) | ≤1.20 @4GHz |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | +100°C |
