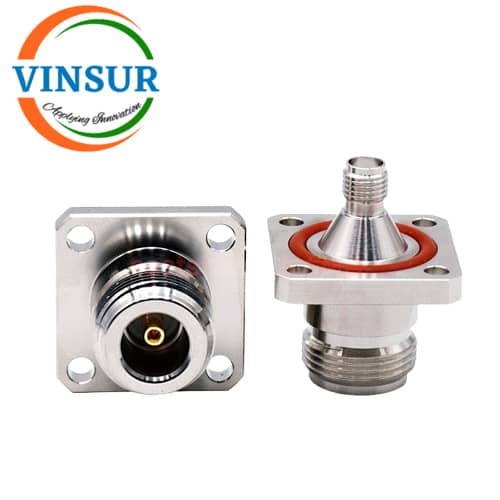

41123421 — RF ADAPTERS – 50 OHMS , N FEMALE 4-HOLE FLANGE , STRAIGHT , TO SMA FEMALE STARIGHT ADAPTERS
- RF Adapters
- N Adapters
- N to SMA Adapter
- 4-Hole Flange
- 50Ω
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | N-type |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Adapter Side 2 Series | SMA |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Features | 4-Hole Flange |
| Impedance (Ohms) | 50Ω |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 11GHz |
| VSWR(Max) | ≤1.2 |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +125°C |
