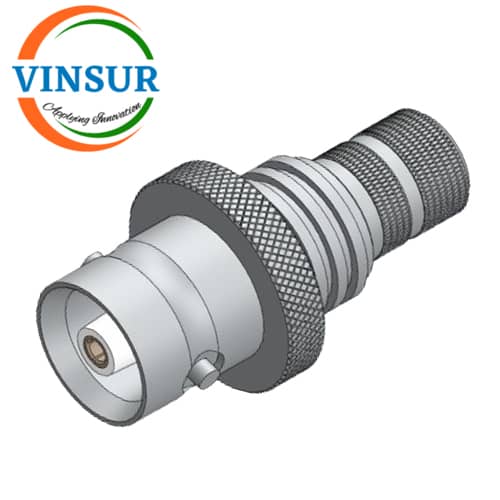

11Z21017 — RF CONNECTOR — 50 OHMS , C FEMALE STRAIGHT CRIMP TYPE LMR-400 CABLE
- RF CONNECTOR: 50Ω
- C-TYPE FEMALE
- STRAIGHT
- CRIMP TYPE
- LMR-400 CABLE
Click Here to download the datasheet
Click Here to download the Drawing
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50Ω |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | LMR400 |
| Max Frequency (GHz) | DC to 4GHz |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
