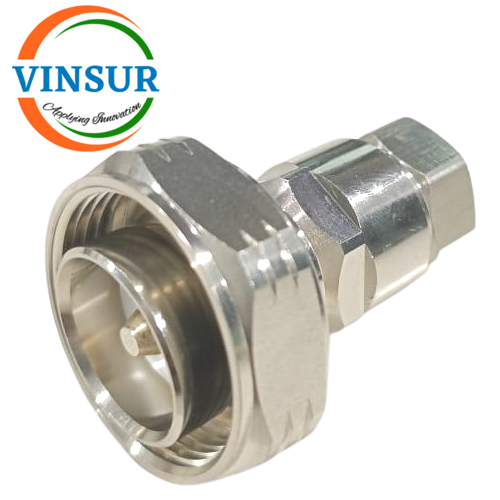

11W1102J– RF CONNECTOR – 50OHMS , DIN MALE , STRAIGHT , CLAMP TYPE ,1-2 INCH SUPER FLEXIBLE CABLE
- RF Connectors
- 4.3-10 Connectors
- Din
- Plug (Male)
- 1-2 Inch Super Flexible Cable
- 50Ω
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Type | DIN |
| Orientation | Straight |
| Termination Style | Cable – Clamp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Termination | Solder |
| Insulator Material | PTFE |
| Cable Type | ½ inch Super flexible Cable |
| Max Frequency (GHz) | 6 |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
