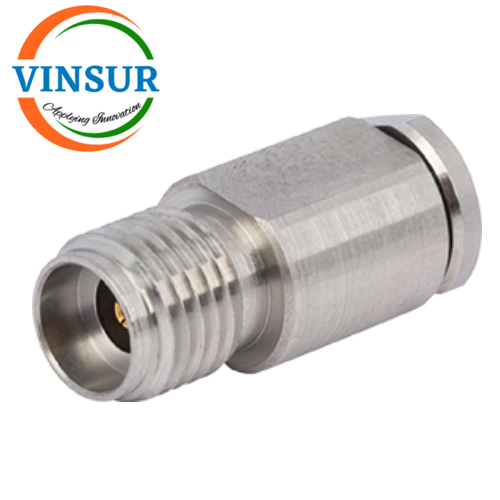

11U2103R– RF CONNECTOR – 50OHMS , 2.92MM FEMALE , STRAIGHT, SOLDER TYPE , RG .085 CABLE
Description
| CONNECTOR SPECIFICATION | |
| Connector name | 2.92mm |
| Gender | Jack(Female) |
| Orientation | Straight |
| Termination Style | Solder |
| Impedance | 50Ω |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium copper |
| Coupling | Threaded |
| Insulator Material | PTFE |
| Cable Type | 0.085 Flexible Coax |
| Number of Ports | Single |
| VSWR | 1.25:1 |
| Max Frequency | DC to 40GHz |
| Temperature Rating | -65°C to +165°C |
