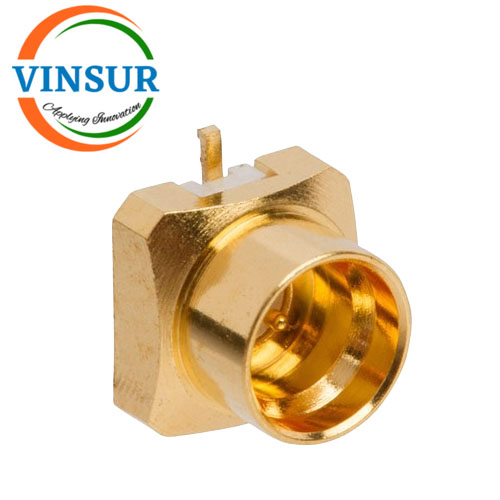

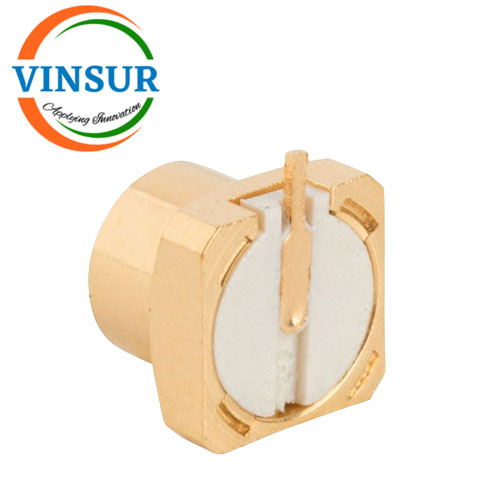

11L11060 — RF CONNECTOR – 50 OHMS , SMP MALE , STRAIGHT , PCB-SURFACE MOUNT
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | PCB-Surface Mount |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Mounting Type | Surface Mount, Straight |
| Mounting Features | – |
| Insulator Material | PTFE |
| VSWR | 1.40 @ 12GHz |
| Max Frequency (GHz) | DC to 12GHz |
| Voltage Rating | 335 Veff Max. |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | 105°C |
