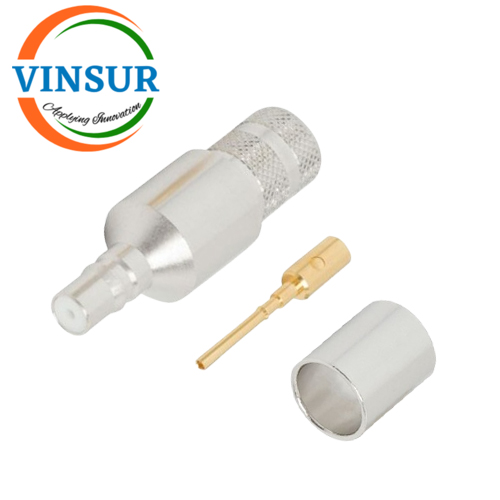

11J21017 — RF CONNECTOR – 50 OHMS , QMA FEMALE , STRAIGHT,CRIMP TYPE,LMR400
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG400 |
| Mounting Features | – |
| Max Frequency (GHz) | DC to 6GHz |
| VSWR | 1.12 Max |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65° |
| Max. Temp. (Celsius) | 165° |
