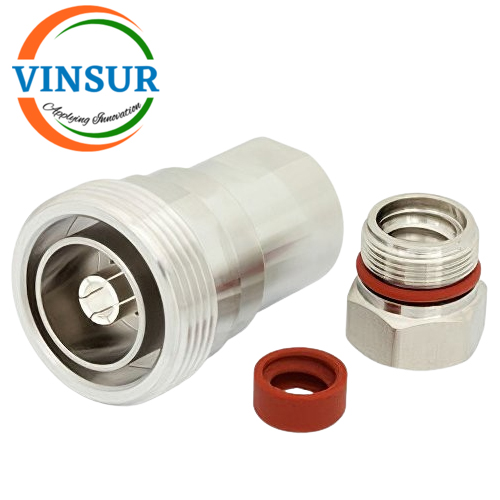

11D2102J — RF CONNECTOR – 50OHMS , 7/16 FEMALE , STRAIGHT , CLAMP TYPE , 1/2 INCH SUPERFLEX CABLE
- RF Connectors
- 7/16 Connectors
- Jack (Female)
- 1/2 Inch Super flex Cable
- 50Ω
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Type | 7/16 Din |
| Orientation | Straight |
| Termination Style | Cable – Clamp |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Termination | Solder |
| Insulator Material | PTFE |
| Cable Type | 1/2 inch Super flexible |
| Max Frequency (GHz) | DC-3GHz |
| VSWR | 1:1:1 |
| Min. Temp. (Celsius) | -40 |
| Max. Temp. (Celsius) | +85 |
