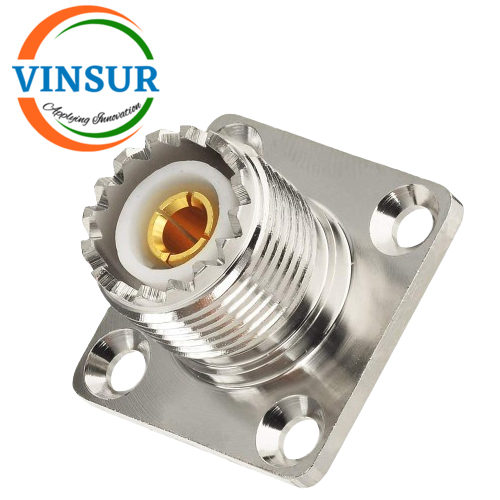

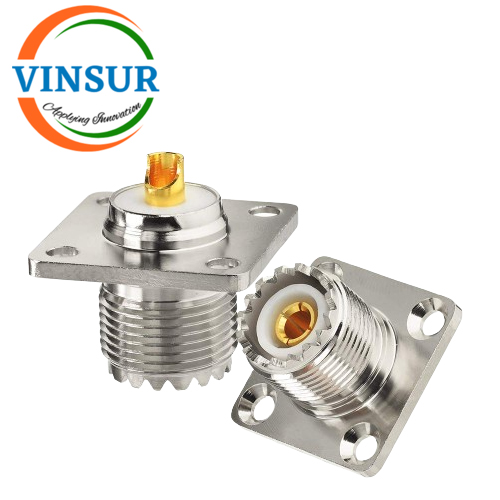

11C214I0 — RF CONNECTOR – 50 OHMS , UHF FEMALE , STRAIGHT , 4 HOLE FLANGE , SOLDER CUP
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | PCB-Solder Cup |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel Plating |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | LMR240 |
| Max Frequency (GHz) | DC to 3GHz |
| VSWR | ≤1.2 |
| Mounting Features | 4-Hole Flange |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | +165 |
