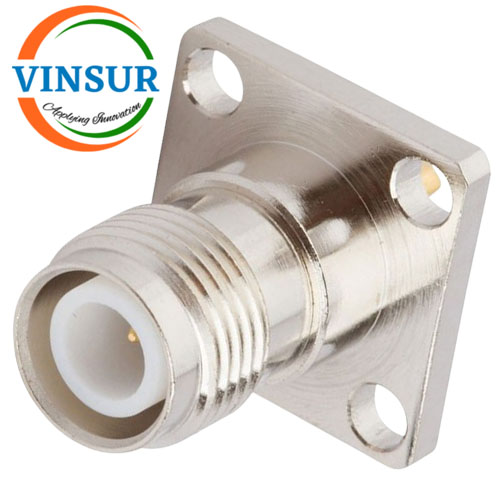

11A214I0 — RF CONNECTOR – 50 OHMS , RP TNC FEMALE , STRAIGHT , 4 HOLE FLANGE , PCB-SOLDER CUP
- RF Connectors
- TNC Connectors
- Jack (Female)
- For PCB Mount
- PCB Solder Cup
- 50Ω
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Male) |
| Orientation | Straight |
| Termination Style | PCB – Solder Cup |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Phosphor bronze |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Coupling Mechanism | Threaded |
| Mounting Feature | 4-Hole flange |
| Max Frequency (GHz) | 11 |
| Polarity | Reverse |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -40 |
| Max. Temp. (Celsius) | 85 |
