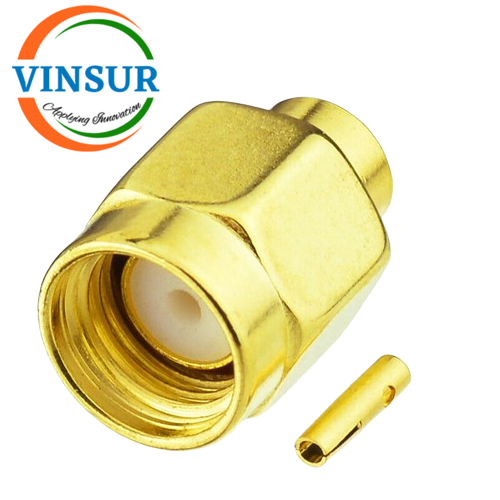

1191103D — RF CONNECTOR – 50 OHMS , RP SMA MALE , STRAIGHT , SOLDER TYPE , RG402 (0.141 INCH) CABLE
- RF Connectors
- SMA Connectors
- Reverse Polarity
- For RG 402(0.141) Cable
- 50Ω
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Centre Conductor | Brass, Gold plating |
| Body Material | Gold plating |
| Coupling Nut | Brass, Gold plating |
| VSWR | ≤1.2 |
| Insulator Material | PTFE |
| Cable Type | RG402(0.141) |
| Max Frequency (GHz) | DC to 6GHz |
| Polarity | Reverse Polarity |
| Thread Direction | Standard |
| Temp (Max Degrees Celsius) | 165° |
| Temp (Min Degrees Celsius) | -65° |
