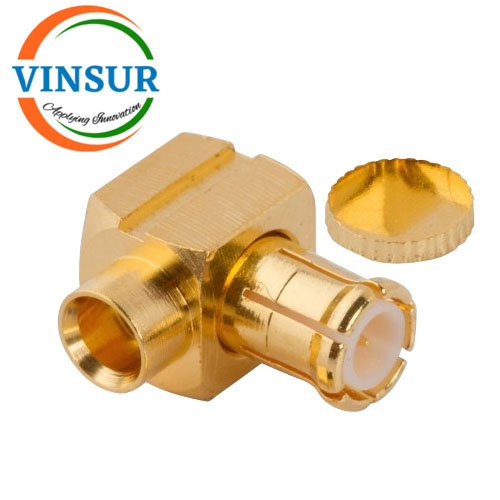

1171203R — RF CONNECTOR – 50 OHMS , MCX MALE , RIGHT ANGLE , SOLDER TYPE , 0.085 CABLE
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Right Angle |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Gold Plating |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG405(0.085) |
| Max Frequency (GHz) | DC to 6GHz |
| VSWR(Max) | 1.40 @ 6GHz |
| Voltage Rating | 170 VRMS @ Sea Level |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | +105°C |
