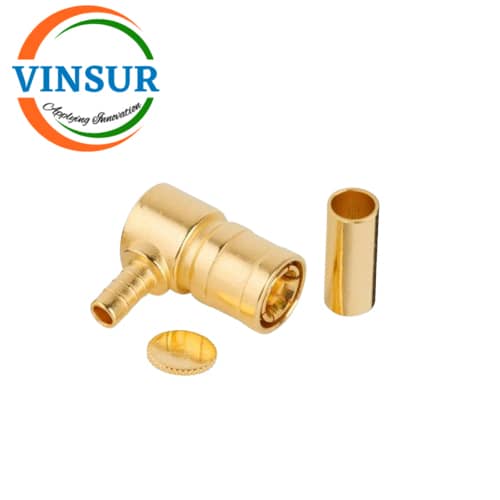

11612014 — RF CONNECTOR – 50 OHMS , SMB MALE , RIGHT ANGLE , CRIMP TYPE , RG316, RG174, RG188, LMR100 CABLE
- RF Connectors
- SMB Connectors
- Plug (Male)
- FOR RG 316,RG174,LMR100 CABLE
- 50Ω
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Right Angle |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG316 |
| Max Frequency (GHz) | DC to 4GHz |
| VSWR | ≤1.35 |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | +165 |
