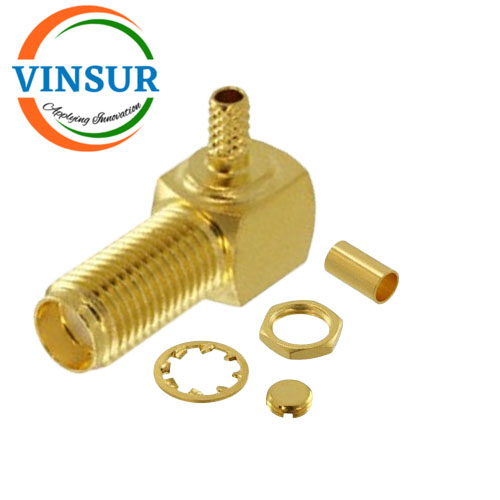

11522214 — RF CONNECTOR – 50 OHMS , SMA FEMALE , RIGHT ANGLE , BULK HEAD REAR MOUNT , CRIMP TYPE , RG316,174 CABLE
- RF Connectors
- SMA Connectors
- Jack (Female) Right Angle
- For RG316,RG174,LMR100 Cable
- 50Ω
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Right Angle |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG316/RG174 |
| Mounting Features | Bulkhead |
| Max Frequency (GHz) | DC to 6GHz |
| VSWR | ≤1.2 |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65° |
| Max. Temp. (Celsius) | 165° |
