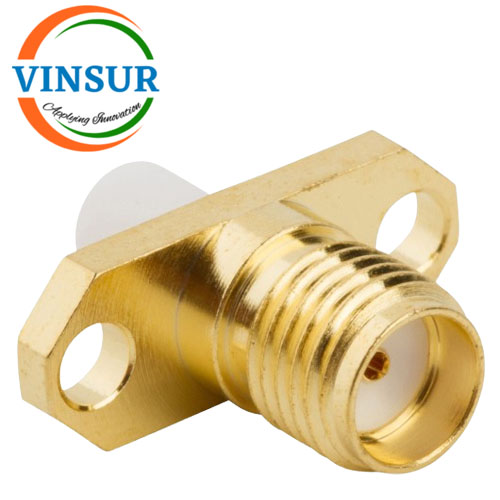

11521390 — RF CONNECTOR – 50 OHMS , SMA FEMALE , STRAIGHT , 2 HOLE FLANGE , 4MM EXTENDED TEFLON , ROUND POST

SKU: 11521390 Category: For PCB Mount Tags: RF connectors, SMA Connectors

Description

CONNECTOR SPECIFICATIONS
Gender	Jack (Female)
Orientation	Straight
Termination Style	Round Post
Impedance (Ohms)	50
Body Finish	Gold
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Contact Termination Style	Solder
Mounting Features	2-hole Flange
Insulator Material	PTFE
VSWR	≤1.15
Max Frequency (GHz)	12
Polarity	Standard
Extended Dielectric Length (mm)	4mm
Min. Temp. (Celsius)	-65
Max. Temp. (Celsius)	165
