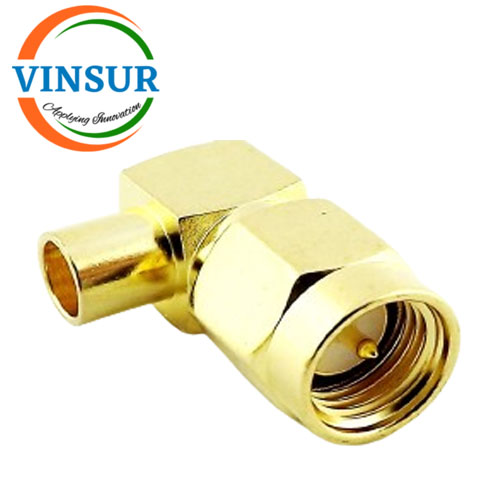

1151203D -- RF CONNECTOR - 50 OHMS , SMA MALE , RIGHT ANGLE , SOLDER TYPE , RG402 (0.141 INCH) CABLE

1151203D -- RF CONNECTOR - 50 OHMS , SMA MALE , RIGHT ANGLE , SOLDER TYPE , RG402 (0.141 INCH) CABLE2

Click to enlarge

1151203D — RF CONNECTOR – 50 OHMS , SMA MALE , RIGHT ANGLE , SOLDER TYPE , RG402 (0.141 INCH)CABLE

RF Connectors
SMA Connectors
Plug (Male) Right Angle
For RG 402(0.141) Cable
50Ω

Click Here to get Datasheet

SKU: 1151203D Category: For RG 402(0.141) Cable Tags: RF connectors, SMA Connectors

Description
Reviews (0)

Description

C

CONNECTOR SPECIFICATIONS
Gender	Plug (Male)
Orientation	Right Angle
Termination Style	Cable – Solder
Impedance (Ohms)	50
Centre Conductor	Brass, Gold plating
Body Material	Gold plating
Coupling Nut	Brass, Gold plating
VSWR	≤1.2
Insulator Material	PTFE
Cable Type	RG402(0.141)
Max Frequency (GHz)	DC to 6GHz
Polarity	Standard
Thread Direction	Standard
Temp (Max Degrees Celsius)	165°
Temp (Min Degrees Celsius)	-65°
