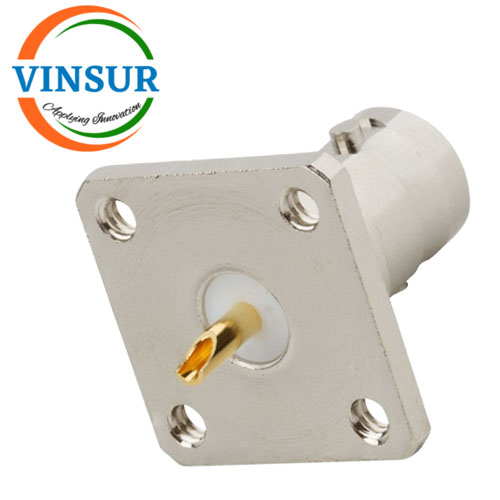

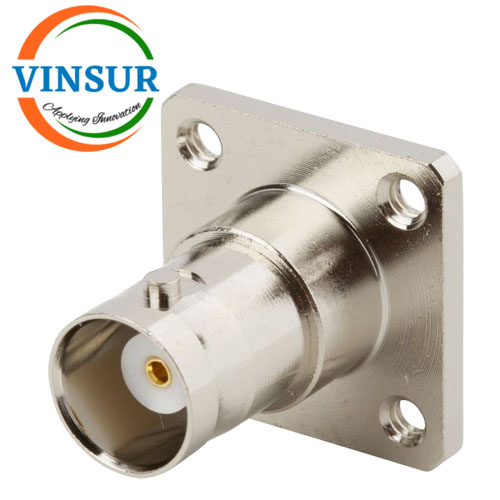

113214I0 — RF CONNECTOR – 50OHMS ,BNC FEMALE , STRAIGHT 4 HOLE FLANGE,PCB-SOLDER CUP
- RF Connectors
- BNC Connectors
- Jack(Female)
- 4-hole flange
- Panel Mount
- 50Ω
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack(Female) |
| Orientation | Straight |
| Termination Style | Solder Cup |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination | Solder Cup |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 4Ghz |
| Mounting Type | Panel Mount |
| Mounting Feature | 4-hole flange |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
