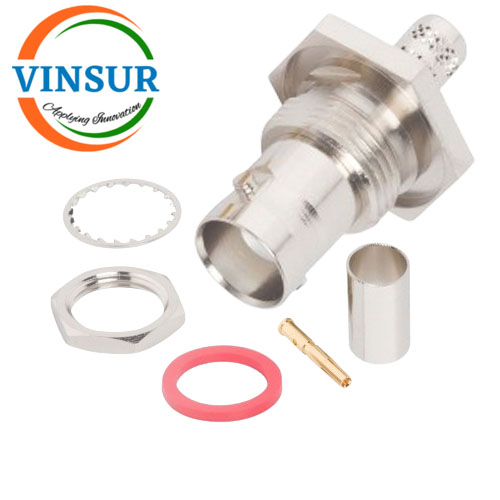

11321216 — RF CONNECTOR – 50OHMS , BNC FEMALE , STRAIGHT, BULK HEAD REAR MOUNT, CRIMP TYPE LMR 240.
- RF Connectors
- BNC Connectors
- Jack (Female)
- Bulkhead
- For LMR240 Cable
- 50Ω
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Mounting features | Bulkhead |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | LMR240 |
| VSWR | ≤ 1.3 |
| Max Frequency (GHz) | DC to 4Ghz |
| Polarity | Standard |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
