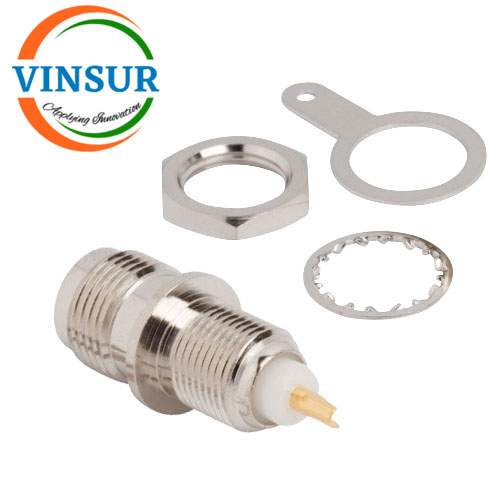

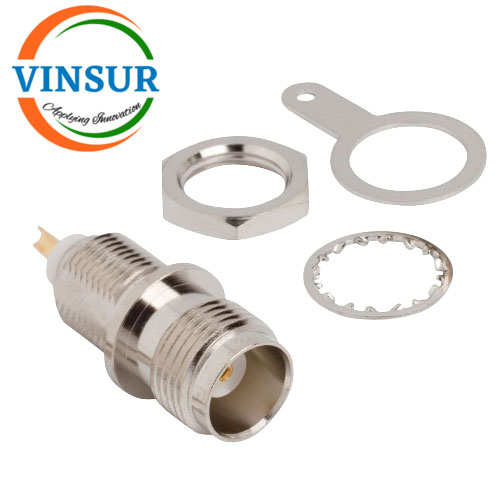

112211I0 — RF CONNECTOR – 50 OHMS , TNC FEMALE , STRAIGHT , BULK HEAD FRONTMOUNT , PCB-SOLDER CUP
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Type | TNC |
| Orientation | Straight |
| Contact Termination | Solder |
| Termination Style | PCB – Solder Cup |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Mounting Features | Bulkhead – Front Mount |
| Polarity | Standard |
| VSWR | ≤1.2 |
| Insulator Material | PTFE |
| Max Frequency (GHz) | 11 |
| Min. Temp. (Celsius) | -85 |
| Max. Temp. (Celsius) | 40 |
